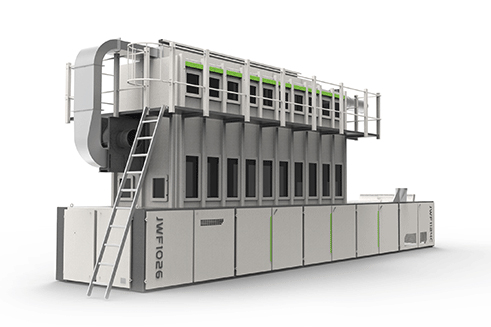

The JWF1026 series multi-mixer is used for processing various grades of raw cotton and cotton-type man-made fiber that are primarily opened. The materials are fed by inlet fan and  distributed into each bin one by one for removing partial dust particles, and then after delivered by feed roller and opened by beater, the processed materials will be blended by delivery lattice and sent into the following machine.

Technical Features:

lThe materials fed into each bin in order and then laid on blending lattice after been opened, to realize fully and evenly blending.

lThe feeding to following machine is simultaneously controlled photocell and air-pressure.

lDirect connection by delivery lattice with cleaner that can reduce floor space.

lFeed speed can be stepless adjusted by ac frequency inverter and can be synchronized with cleaner.

lLarge mesh area for exhausting tiny dusts.

lSuitable for different production requirements of openers.

lGood rigidity of one-piece wall frame 2000 x 1230 x 6.

lComb beater of Ф406 which is light and make no damage to fibers.

lThe control panel adopts touch screen and PLC so that can settings can be easily and visually.

Specifications：
