Type TF45B Heavy part separator is composed of fan assembly, heavy part separation assembly, airflow balancing assembly. It has these functions such as raw materials conveying, heavy particles removing, airflow balancing etc. It is suitable for chemical fiber, OE-spinning and regenerated cotton in new type blowing-carding process, especially in traditional disc plucker of blowing-carding process.

★The speed of new type ZF9104-500 fan is controlled by inverter at wide range of adaptation;

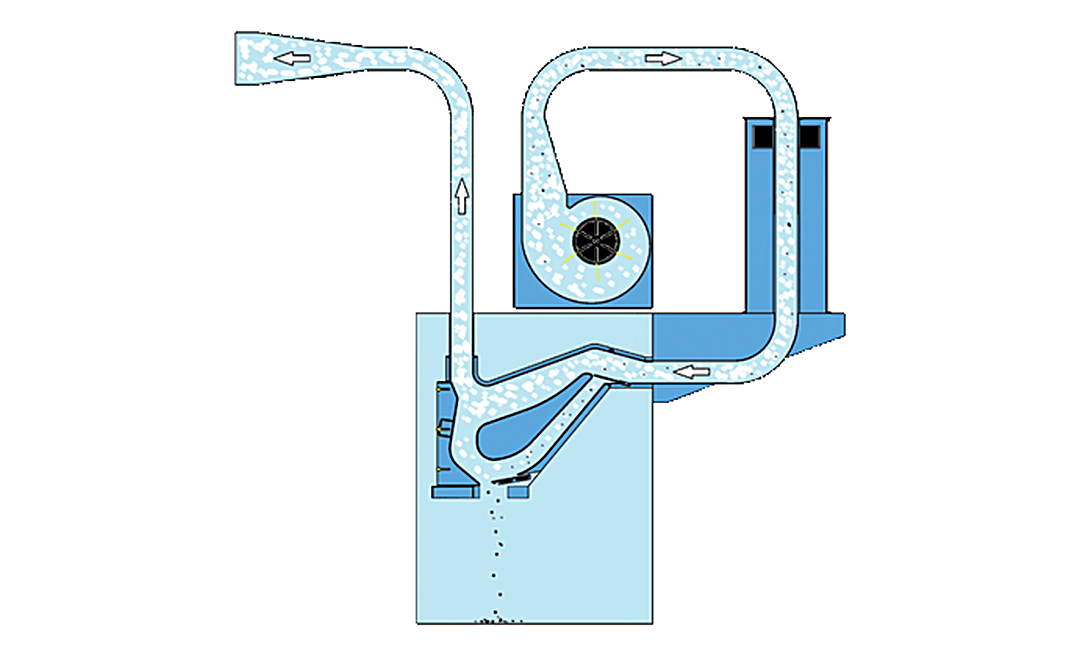

★The heavy part separation assembly uses the aerodynamics to separate heavy parts and impurities from raw materials, and has good separation effect of heavy parts and large impurities without fiber damage;

★The airflow balancing function can automatically match the air capacity of fan in the conveying system, and improve the stability of the system;

★Air balancing assembly with large mesh plate structure and connected with the filter system can remove dust and linter in raw materials;

★The machine can be connected not only flexibly and freely with axial-flow openers, but also directly with multi-mixers

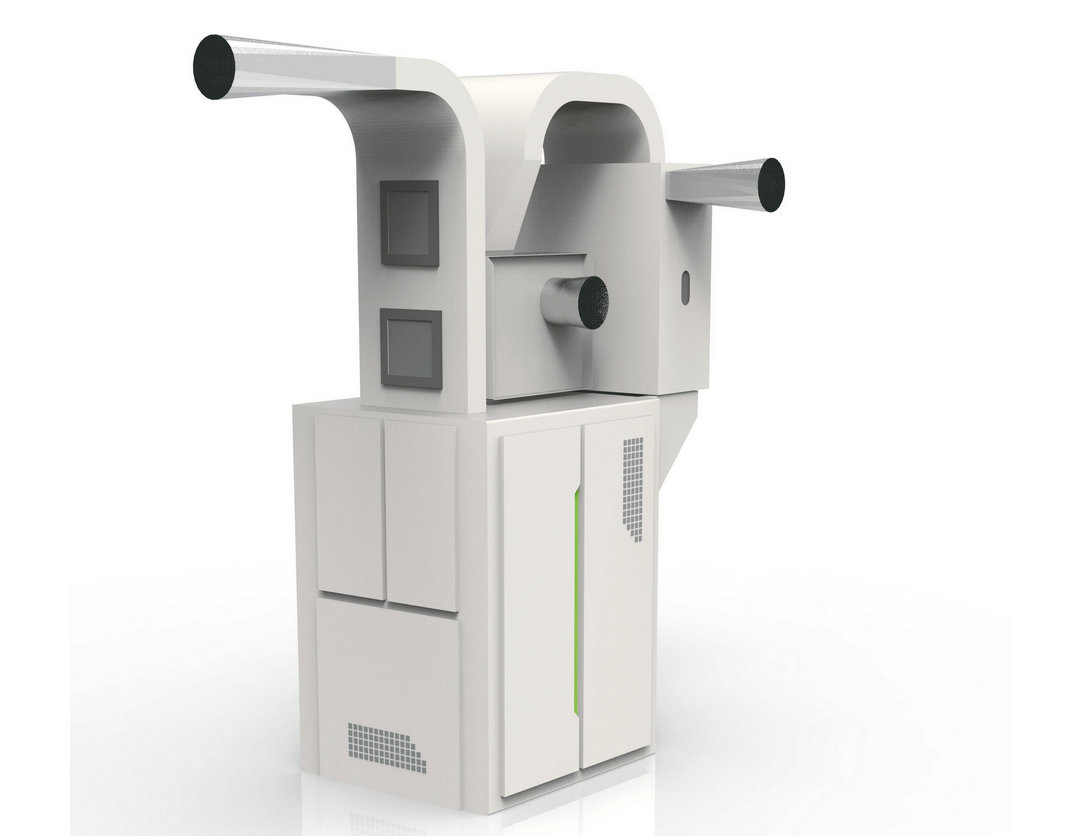

Product Display

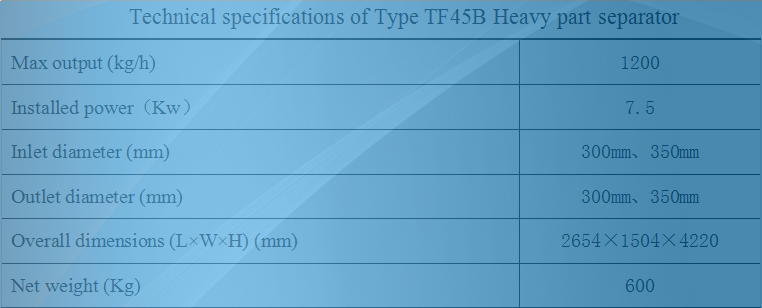

Technical Parameters
