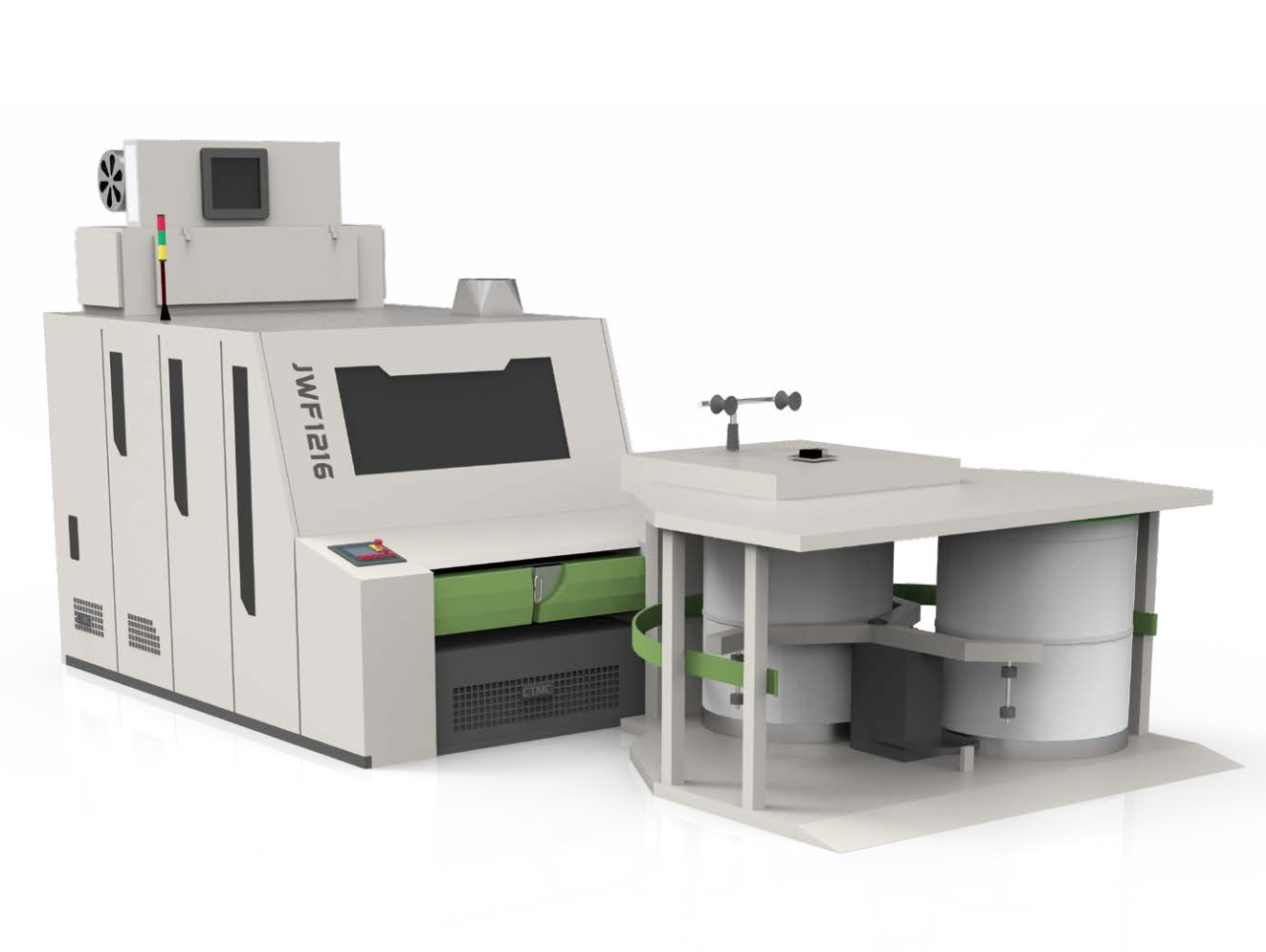

JWF1216/JWF1216-120 Carding machine is a new generation of high production wide carding machine designed by Zhengzhou Hongda New Textile Machinery Co., Ltd. Compared with last generation, the machine has larger carding area, wider carding width, and less floor place. The improvement of technology makes higher production and quality. The machine is stable, simple to operate, easy to maintain, energy-saving, and consumption-reduced.

This series of single licker-in carding machine is mainly used for carded/combed ring spinning or rotor spinning.

Technical Features：

lThe tuft feeder can choose single-roller/double-roller structure to fit different spinning needs.

lThe total length is shortened in order to reduce floor space.

lThe first suction hood under licker-in adopts middle suction structure for lower air waste and smoother dust exhaust.

lCylinder is controlled by special designed frequency drive with stable startup and convenient speed adjustment.

lOptimized main drive structure makes more safe and convenient in maintenance.

lOptimized structure of frame and cylinder zone, for enlarging the carding area and more flexible configurations of stationary flat and web cleaner.

lThe aluminum alloy revolving flat with synchronous toothed belt is driven by individual motor with inverter, the speed can be adjusted stepless.

lThe new-type support structure of new revolving flats can make the flats cleaning much cleaner.

lActive continuous suction system is adopted to make airflow stable and smooth, results good effect on waste removal.

lMultiple safety inspections and auto-stop system.

lMultidimensional auto-levelling system and intelligent closed-loop control technology are adopted.

lTotally-enclosed integrate safety hood with protective electromagnetic lock to ensure the safety.

Main Advantage：

Uniform and stable cotton layer:

The feed-in roller in tuft feeder is controlled by inverter, harmonized with circulation fan blowing system, lower feeder pressure control system， and feed-in roller control system to realize uniform and stable cotton layer fed in card.

Less fiber damage:

When the tuft feeder is equipped with feed roller and feed plate, cotton layers are elastically gripped by feed roller and feed plate, and fed in order; When equipped with double feed roller structure, the clearance between two rollers can be adjusted, the fiber release space between two rollers and beater is increased, the tear strength between beater and fiber is reduced. As a result, fiber damage can be reduced.

The feed roller of carding machine and feed plate are also elastically gripping the cotton layers, the carding length can be adjusted in order to better protect the fiber and reduce the damage.

Improved waste removal efficiency:

The air volume and pressure are distributed rational at each suction point in order to better remove linter, dust, impurities etc.

Suitable for differential fiber spinning:

Different combinations of stationary flats, aluminum alloy suction hood and cover plate can be installed according to different spinning requirements.

Number of stationary flats: Twelve in front and Fourteen at rear (Be adjusted according to technical requirements).

Number of web cleaner: Two in front and Three at rear (Be adjusted according to technical requirements).

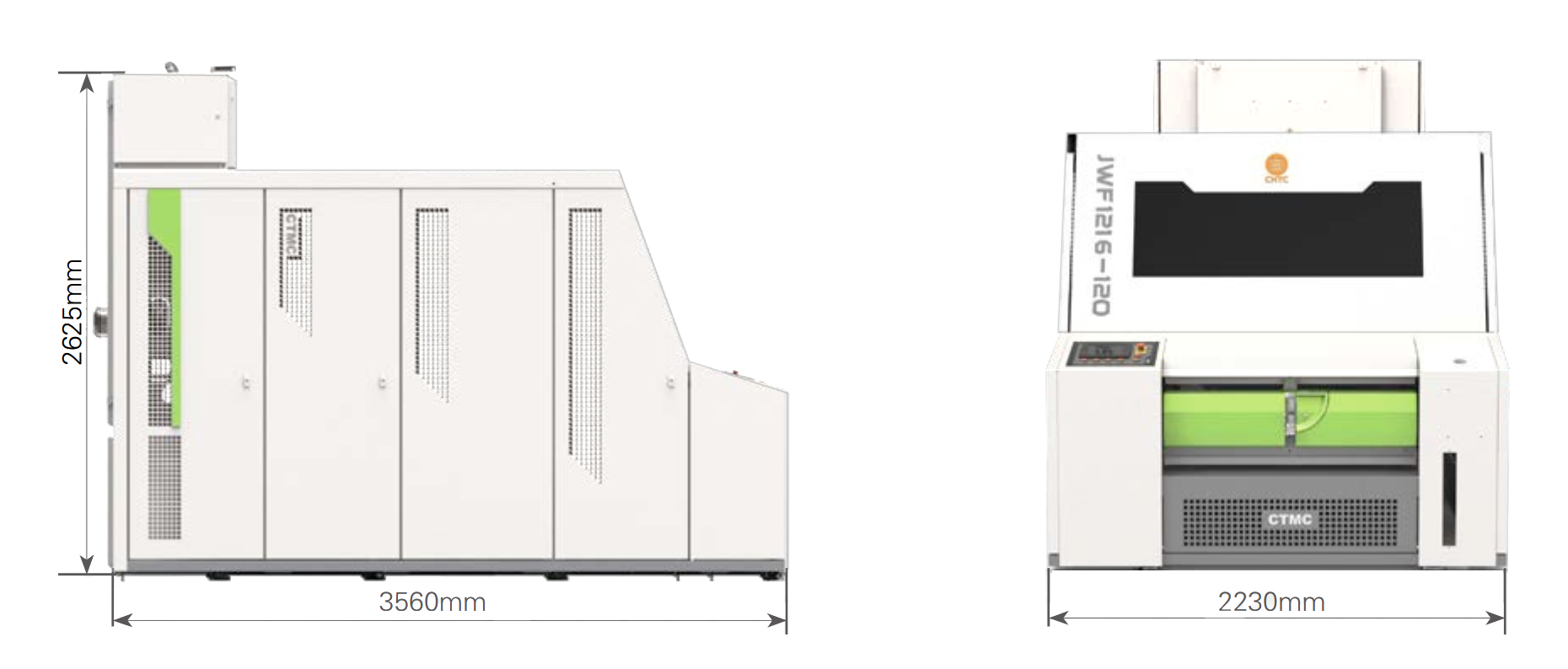

Specifications：

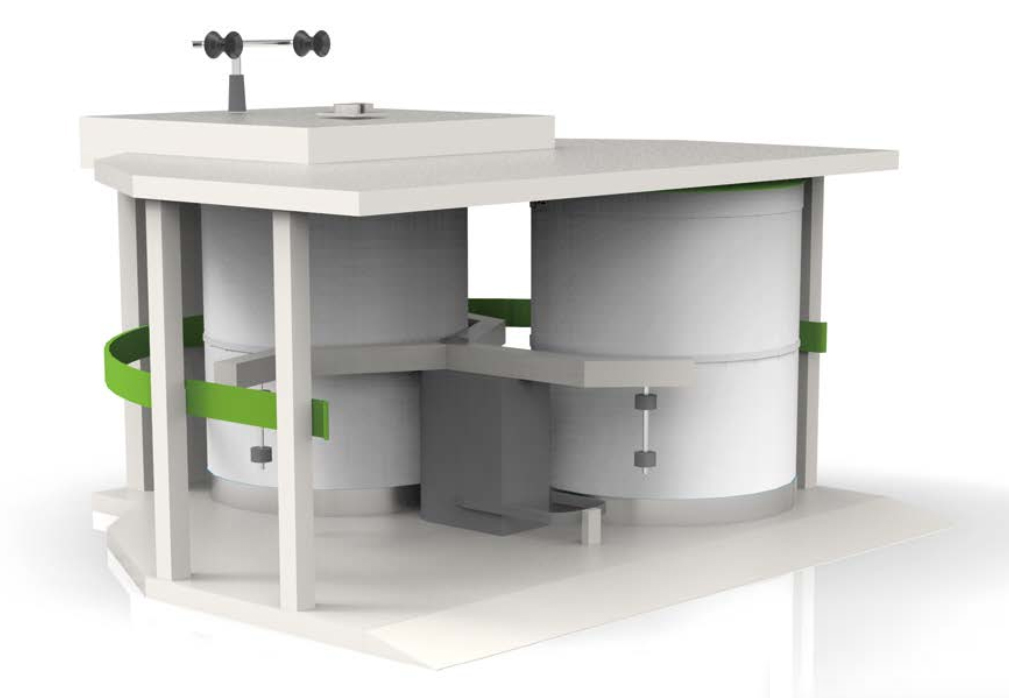

TF Series Can Coilers

This machine used to coiling the sliver processed by carding machine into sliver can for further processing in draw frame. The series of coilers can be equipped with manual can-changer and auto can-changer. When the sliver length reaches to the setting value, the machine can break slivers and change cans automatically. The sliver break technology won the invention patent

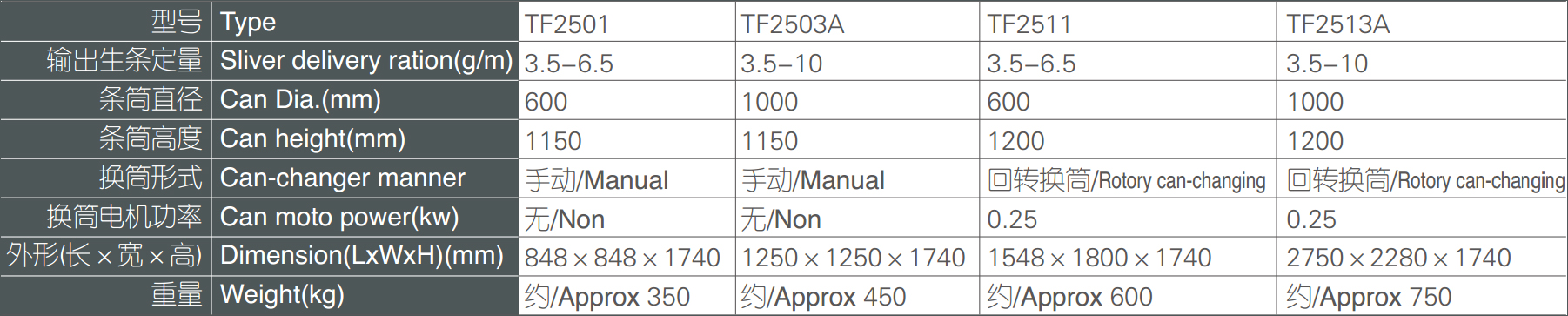

Specifications：

TF Series Linear Can-Changing Coilers

This model of coiler adopts linear can-changing carriage driven by cylinder and pulley system. It is more flexible to install.

Specifications：
