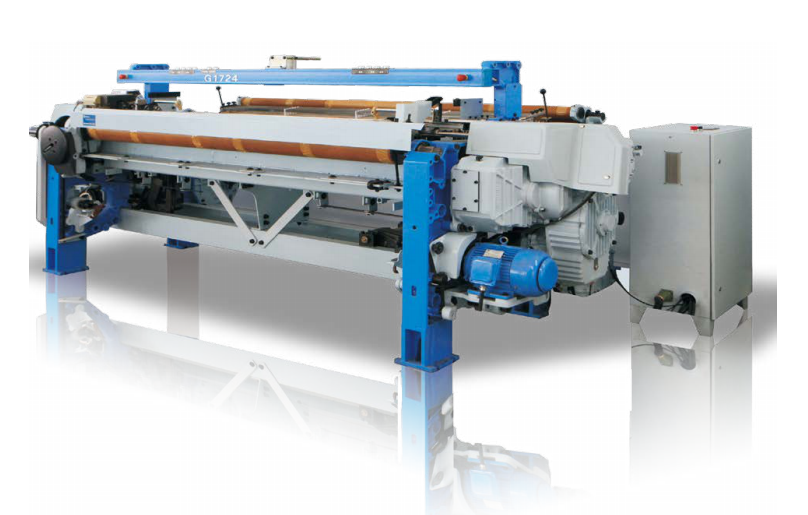

JWG1724 Series rapier looms adopt the advanced mechanical and electronic device to control the tension of warp and weft more even so that the high-quality fabrics can be produced. It is suitable for weaving light, medium and heavy fabrics from all kinds of fibers such as cotton,wool, silk, ramie, and man-made fibers.The best looking,reliable structure,high-powered electric control system and the simple intelligent operation, low-energy consumption, and convenient maintenance of the machine also show the economic and practical.

Designed by the advanced computer technology, the contour of conjugate cam has been optimized. It makes the acceleration movements more reasonable and reliable during the weft insertion. The better weft tension will make the flexible weft insertion in highest degree. Made of steel, the integral conjugate cam for weft insertion and beating has reliable strength and working life.

Cam Matching Machine， The insertion and beating motion are driven by the conjugate cam system. The fitting precision is the key of installation. The special machine for fitting cam system can precisely control the assembling precision for cam box. Ensure the heart of machine have reliability and long service life.

☆ Let-off Motion

It can be equipped with mechanical or electric let-off motion. The diameter of flanges is Φ800 or Φ1000 that can be selected by users.

☆ Take-up Motion

It can be equipped with mechanical or electric take -up motion.

☆ Main Drive

Based on the users’ requirements, it can be equipped with direct drive unit that saves electromagnetic clutch, belt, reduction gearbox and so on. And its energy saving can be up to 10%.

☆ Electric Control

JWG1724 adopts the all-digital control with 32-bit Single-Chip, which is simple and convenient to be operated. And it has the function of man-machine interaction and fault diagnosis.
