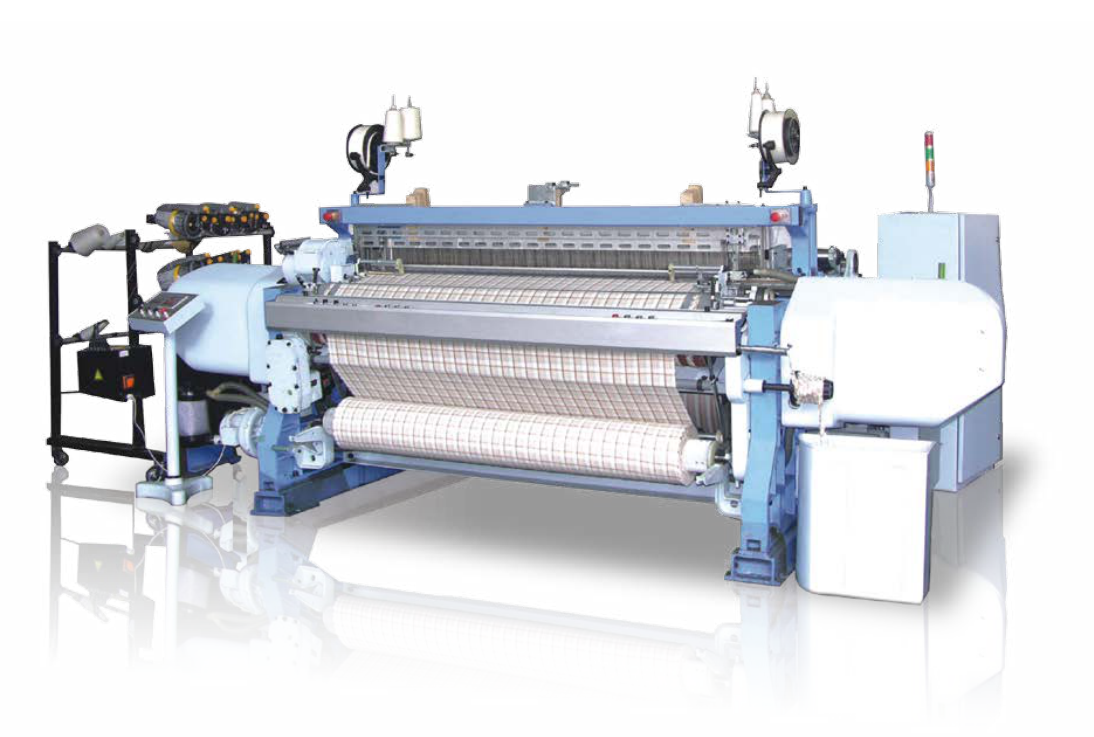

Based on the ten years’ developing and manufacturing experience on the weaving machines in Jingwei Textile machinery Co.,Ltd. They developed the newest high speed rapier weaving machine type JWG1728A which has multitude patents.The first -class R&D technicians constructed the core of loom and the high manufacture capability ensured its high quality. The simple and reliable rapier weaving machines solves lots of the problem in technical area of the controlling, manufacturing and weaving method, decreased the power consumption and the machine running and maintenance costs. The figuration design combines well with the metal shield, and has the easy installation and good looking. The reliability, stability, flexibility and applicability of JWG1728A Rapier Weaving Machine ensure the high quality of your fabric.

JWG1728A series rapier loom is designed elaborately and it adopts the separate main driving technique, weft insertion motion with spatial connection rod and minimal idle stroke design, which optimize the acceleration for weft inserting, lower the vibration for weft tension,it is suitable for the weft inserting with high speed and increase the production efficiency. The free shuttle race is used on JWG1728A rapier loom instead of guiding hooks. Which avoids the effluence of guiding hook on the warps and increases the quality of fabric having special requirements on warps. The weft inserting motions with single or double floating guiding hooks are also available, which can separate the rapier from warps and are suitable for the high speed weaving of most fabric

☆ Stable Frames

JWG1728A series rapier loom is selected the box-type frame which connected with four firmed beams. The good rigidity and low vibration ensure its unsurpassed stability so that it is suitable for weaving the super-heavy fabric.

☆ Optimized Rapier Gripper Movement

JWG1728A series rapier loom is designed elaborately and it adopts the separate main driving technique, weft insertion motion with spatial connection rod and minimal idle stroke design, which optimize the acceleration for weft inserting, lower the vibration for weft tension,it is suitable for the weft inserting with high speed and increase the production efficiency. The free shuttle race is used on JWG1728A rapier loom instead of guiding hooks. Which avoids the effluence of guiding hook on the warps and increases the quality of fabric having special requirements on warps. The weft inserting motions with single or double floating guiding hooks are also available, which can separate the rapier from warps and are suitable for the high speed weaving of most fabric.

☆ Strong beating force

The optimal curve of beaming cam, stronger rocket shaft, solid slay and slay bracket ensure the strong beating force for weaving all kinds of fabric.

☆ Electronic let-off and take-up

The electronic let-off and take-up system driven by separate servo motors and been synchronous by the encoder. The sensitive tension sensor controls the warps tension and ensures the weaving motion with constant tension. There are the programs for preventing start-up marks function, which can reduce the start-marks effectively and improve the fabric quality.

☆ Main Drive System

Main drives of the machine adopts super oil cooling motor instead of asynchronous motor. Belt and electro-magnetic brake clutch are adopted too.Chains are reduced and energy saving by 15%.
