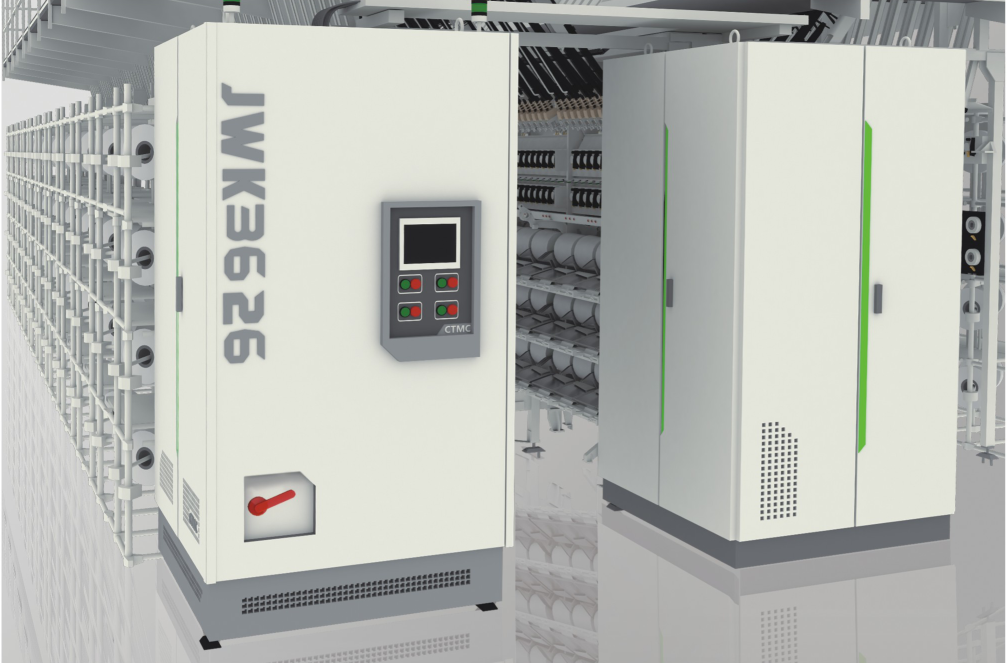

JWK3626 polyamide draw texturing machine is new generation type focused on improving quality of yarn and energy-saving. Feeding yarn by single guiding godet meets the quality requirement and process stability, which is suitable particularly for fine denier multi-filament yarn. Driving system is simple structure, remarkable energy -saving, noise reduce by super-efficiency rare earth permanent magnet synchronous motors.

☆Godet

Feeding of single guiding godets replaces the roller-driving device with rubber press.

☆Direct Connection

Energy-saving motor is connected directly to take-up shaft and traverse shaft,which makes energy waste down more than 10%.

☆Pneumatic String-up

Pnenmatic string-up system improves piecing-up efficiency by damping hole for inlet/outlet and buffering on the top.

☆Winding

Winding use RPR design on winding method and stroke modification to make package more excellent.
