JWF1312B draw frame is draw frame with 2 deliveries and auto leveller in the course of design, the product experiences of approximate one thousand drawframe FA326A and new process of modern textile technology are used in it. The main design purpose is to improve the delivery speed and the sliver quality, and suit for the further requirement of the textile technology developing.

The machine is suitable for 22- 76mm cotton cotton fiber, mid length fiber and their blends. It can be used for single doubling some fiber after combing and widely used for first or last doubling passage for different kinds of fiber.

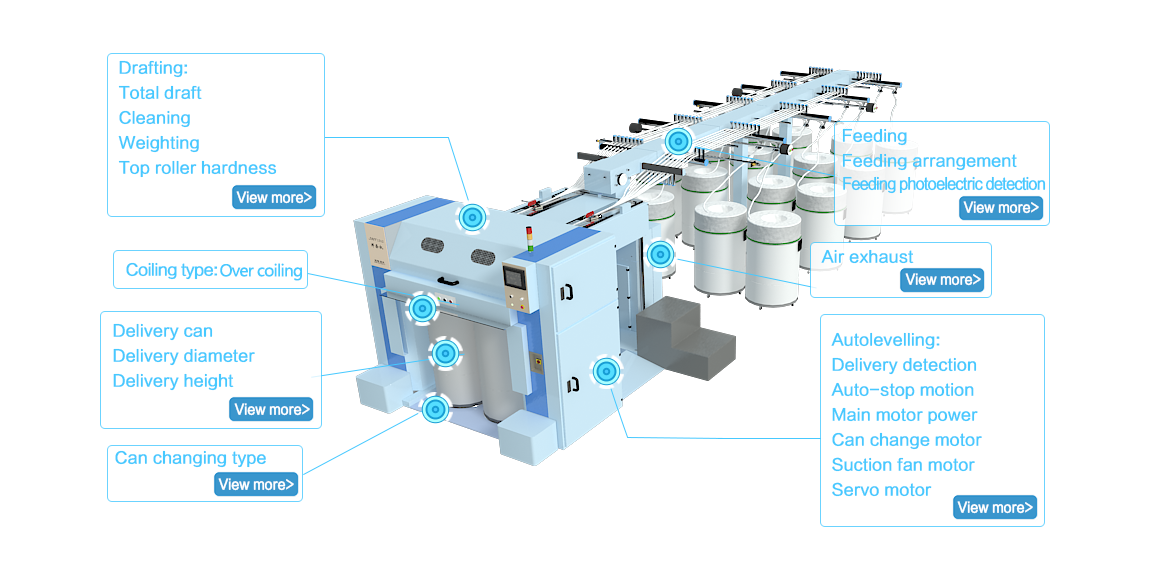

Draft Driving

Coiling System

Autoleveller Change

The kind of drawframe is more mature new type of machine with 2 deliveries at present. Especially for processing combed fiber, less floor space and low maintenance cost. It has higher quality and price compared with the same kind of import It can meet the requirement of all kinds fiber It is the ideal product used broadly.

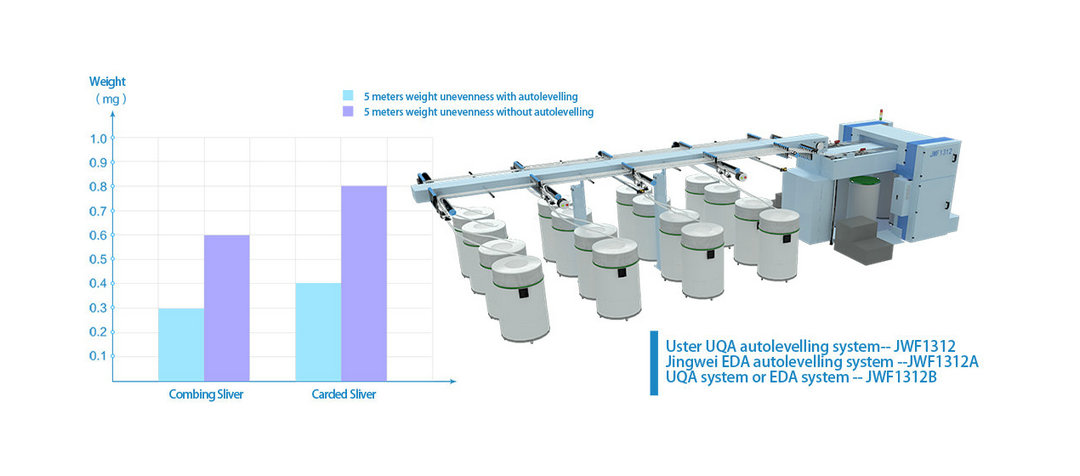

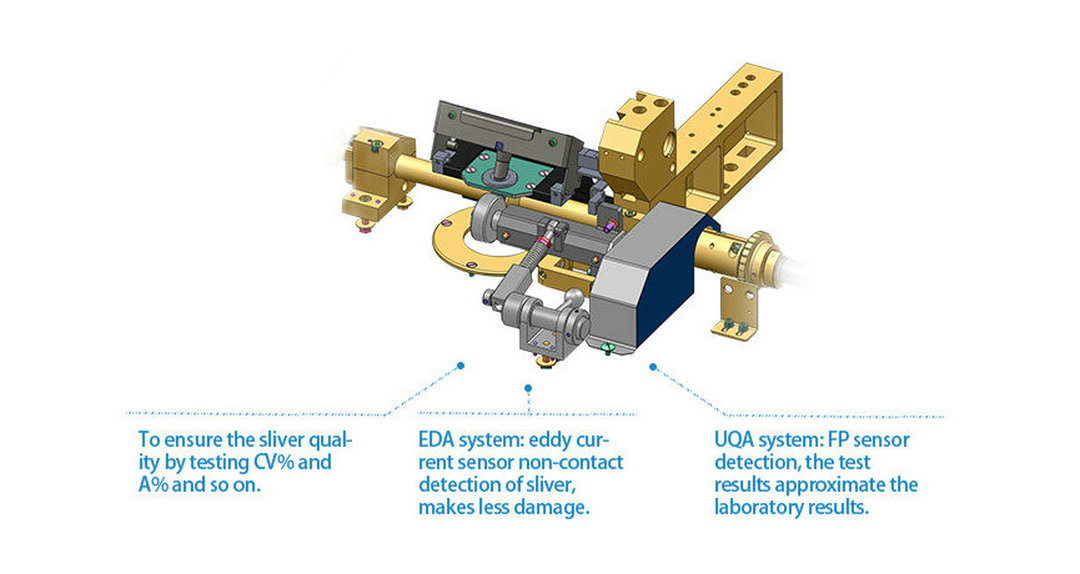

UQA Autolevelling

EDA Autolevelling

Autolevelling Executing Agency

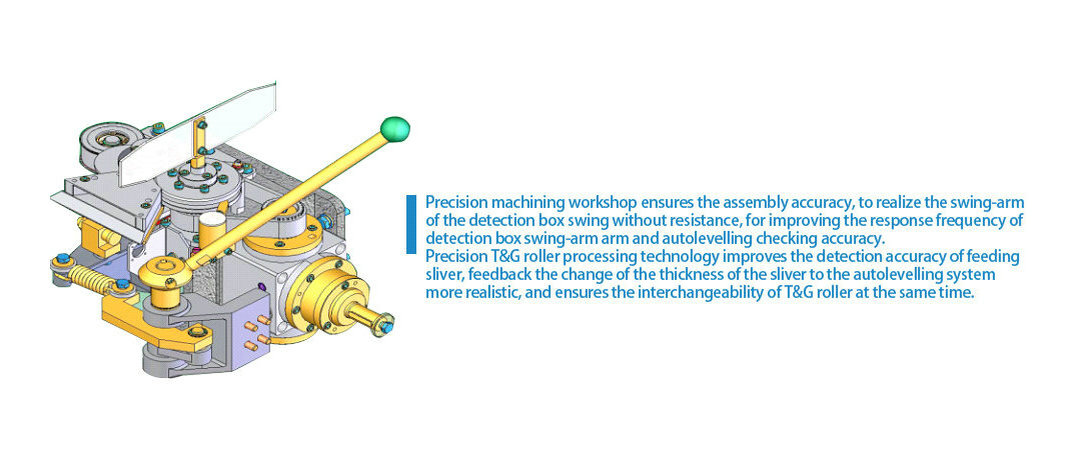

1. Feeding Detection Mechanism

2. Autolevelling Different Mechanism

3. Delivery Sliver monitoring Mechanism

Cleaning

Stabiltity

Intelligent Breaking Device

Video Demo
